Oxygen Sensor Finder Tool

Replacement Sensors

Use the Sensor Finder Tool below to see which Maxtec sensor is compatible to replace any current non-Maxtec sensors you have been using in your specific application.

Sensor FAQ’s

Find answers to our most commonly asked questions about oxygen sensors. Covering topics such as materials, storage, performance, calibration, warranty and more.

Bulk Orders

If you are a device manufacturer in need of an OEM sensor supplier, or if you would like to purchase a bulk order of sensors, contact us to learn how Maxtec can assist you.

  • Replacement For

  • Reset

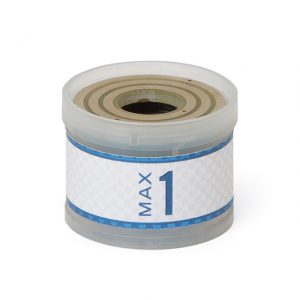

Max-1 Oxygen Sensor

R113P90 12 month warranty

Specifications

  • Output Range: 14 to 20 mV
  • Response Time: ≤ 17 seconds
  • Linearity: ≤ 3% full scale
  • Expected Lifetime: > 500,000 %O2 hours
  • Electrical Interface: gold plated slip rings

Documentation

Replacement For

  • Analytical Industries [PSR-11-915]
  • Datascope [Multinex Analyzer]
  • GE (Datex-Ohmeda) [0237-2034-700 Excel Modulus,5250 RGM,5150 Handheld Monitor]
  • GE (Ohmeda) [5120, 5100, 5250 RGM, 4700 Oxicap, 7800, 5125, 5150, Handheld Monitor, 0237-2034-700, Excel Modulus]
  • Hewlett Packard [15201A]
  • Mercury Medical [10-103-07]
  • Pacifitech [PT-10]
  • Teledyne [R15 #C-41131]
  • Teleflex (Hudson) [5556]
  • VTI [100352, 101272, 100352]

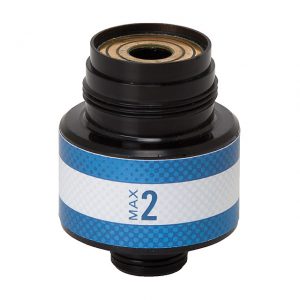

Max-2 Oxygen Sensor

R107P20 24 month warranty

Specifications

  • Output Range: 12.2 to 18.1 mV
  • Response Time: ≤ 15 seconds at 23±2°C
  • Linearity: ± 1.0%
  • Expected Lifetime: > 2,000,000 %O2 hours

Documentation

Replacement For

  • Analytical Industries [PSR-11-915-1]
  • Drager [6803290, 6850645, Narkomed, Fabius GS, Tiro]
  • Hewlett Packard [15201A]
  • Invivo [Magnitude]
  • Mercury Medical [10-103-12]
  • Pacifitech [PT-24]
  • Teledyne [R31]
  • VTI [101372, 101372]

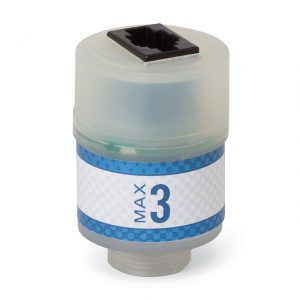

Max-3 Oxygen Sensor

R109P11 12 month warranty

Specifications

  • Output Range: 9 to 13 mV
  • Response Time: ≤ 15 s
  • Linearity: ≤ 2%
  • Expected Lifetime: >500,000 %O2 hours
  • Electrical Interface: RJ11 modular plug

Documentation

Replacement For

  • City Technology [MOX-3]
  • Mindray [VT50 Ventilator]
  • Paragon [Platinum SC430]
  • Penlon [Prima SP2]

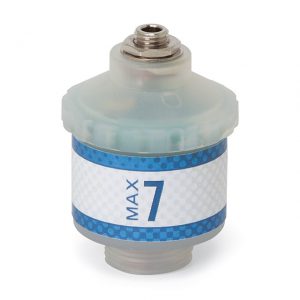

Max-7 Oxygen Sensor

R109P09 12 month warranty

Specifications

  • Output Range: 8.0 to 12.0 mV
  • Response Time: ≤ 12 s
  • Linearity: ± 2.0%
  • Expected Lifetime: < 6 years
  • Electrical Interface: 3.5mm mono jack

Documentation

Replacement For

  • Precision Medical [505327]
  • Teledyne [R17MED #C-43690, AX/MX300 Series, R17MED #C-43690]

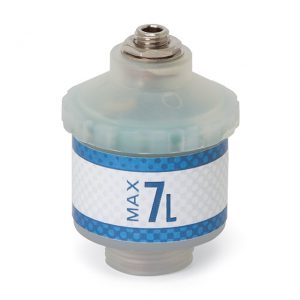

Max-7l Oxygen Sensor

R109P13 12 month warranty

Specifications

  • Output Range: 3.5 to 7.5 mV
  • Response Time: < 12 s
  • Linearity: ≤ 2%
  • Expected Lifetime: > 1,000,000 %O2 hours
  • Electrical Interface: 3.5 mm mono jack

Documentation

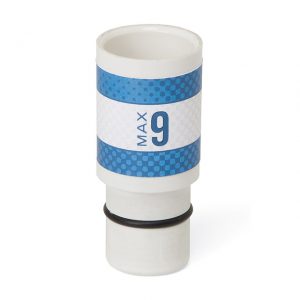

Max-9 Oxygen Sensor

R114P80 14 month warranty

Specifications

  • Output Range: 26.4 to 44.0 mV
  • Response Time: ≤ 20 s
  • Linearity: ±1%
  • Electrical Interface: 4-pin Hudson

Documentation

Replacement For

  • Analytical Industries [PSR-11-55]
  • HillRom [6736140]
  • Mercury Medical [10-103-03]
  • Pacifitech [PT-05]
  • Teledyne [R13 #B-39636]
  • Teleflex (Hudson) [5500, V-05, 5590, 5577, 5584, 5595, 6477]

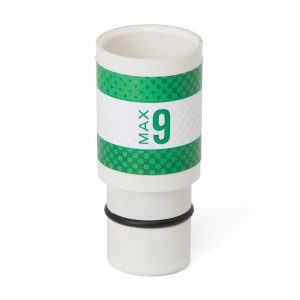

Max-9 Scuba Oxygen Sensor

R114P80

Replacement For

  • Hudson [5500]
  • Maxtec [R114P80]

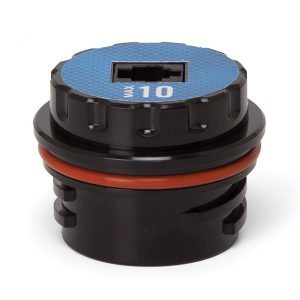

Max-10 Oxygen Sensor

R112P10 12 month warranty

Specifications

  • Output Range: 8.0 to 13.5mV
  • Response Time: ≤ 15 s
  • Linearity: ± 2%
  • Expected Lifetime: > 900,000 %O2 hours

Documentation

Replacement For

  • Analytical Industries [PSR-11-915-4]
  • City Technology [MOX-7]
  • EnviteC [OOM-110]
  • GE (Ohmeda) [6050-0004-110, Modulus SE, 7900 Series, Aisys, Aestiva Series, SmartVent S-5, Aespire, Avance]
  • International Technologies [M-10]
  • Mercury Medical [10-103-10]
  • Pacifitech [PT-20A]
  • Teledyne [R30MED #B-72939]

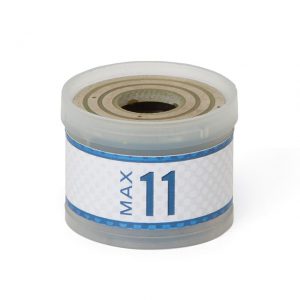

Max-11 Oxygen Sensor

R113P10 12 month warranty

Specifications

  • Output Range: 14 to 20 mV
  • Response Time: ≤ 12 s
  • Linearity: ≤ 3%
  • Expected Lifetime: > 500,000 %O2 hours
  • Electrical Interface: gold-plated slip ring

Documentation

Replacement For

  • Analytical Industries [PSR 11 915 2]
  • Drager [6803290, 6850645, Narkomed G5, Fabius GS, Evita Family, Babylog, Cato, Fabius Series]
  • EnviteC [OOM-201]
  • HillRom [PSR-11-915-2]
  • International Technologies [M-02]
  • Invivo [Magnitude]
  • Mercury Medical [10-103-07]
  • Pacifitech [PT-14A]
  • Teledyne [R23 #C-61139]
  • Teleflex (Hudson) [5557, V-14]
  • VTI [101372, 100352, 101372, 100352]

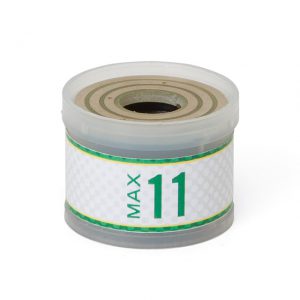

Max-11 Scuba Oxygen Sensor

R113P10

Replacement For

  • Drager [OxyGauge]
  • Maxtec [R113P10]

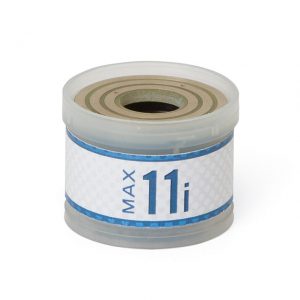

Max-11i Oxygen Sensor

R113P06 12 month warranty

Specifications

  • Output Range: 14 to 20 mV
  • Response Time: ≤ 12 s
  • Linearity: ≤ 3%
  • Expected Lifetime: > 750,000 %O2 hours
  • Electrical Interface: gold-plated slip ring

Documentation

Replacement For

  • Drager [Incubators, 18000 High Temp App.]

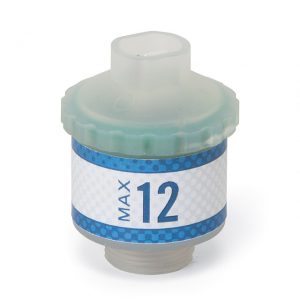

Max-12 Oxygen Sensor

R109P45 14 month warranty

Specifications

  • Output Range: 12.5 to 16.5 mV
  • Response Time: ≤ 12 s
  • Linearity: ≤ 3%
  • Electrical Interface: 3-pin Molex

Documentation

Replacement For

  • Analytical Industries [PSR-11-917-M]
  • City Technology [MOX-9]
  • Datascope [0600-00-0002 (MAX-12f)]
  • EnviteC [OOM-202]
  • Hamilton [396008, 396009, Galileo, Raphael, Arabella, Aladdin, 51254, G5, Arabella]
  • IMT [PF300]
  • International Technologies [M-04]
  • MSA [472062, 470644]
  • Mercury Medical [10-103-06]
  • Pacifitech [PT-12A]
  • Sensidyne [Acutonic Hi Freqency Jet Ventilator, 00M102]
  • Siemens [9004979-E347E]
  • Spacelabs [90513, Capnograph]
  • Taema [YR049700, Cesar-2, Horus-4]
  • Teledyne [R24MED #B-62321]
  • Teleflex (Hudson) [5556, V-12]
  • VTI [103100]

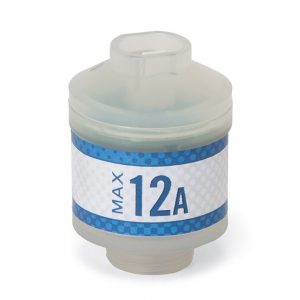

Max-12a Oxygen Sensor

R109P48 14 month warranty

Specifications

  • Output Range: 8.0 to 13.0 mV
  • Response Time: ≤ 15 s
  • Linearity: ≤ 3%
  • Expected Lifetime: > 500,000 %O2 hours
  • Electrical Interface: 3-pin Molex

Documentation

Replacement For

  • HillRom [Isolette Incubator]
  • Philips (Respironics) [NeoPAP]

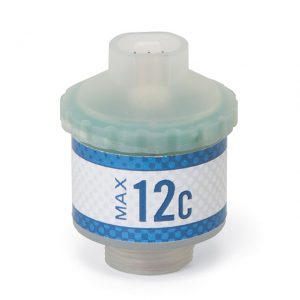

Max-12c Oxygen Sensor

R109P53 14 month warranty

Specifications

  • Output Range: 8.0 to 13.0 mV
  • Response Time: ≤ 12 s
  • Linearity: < 3%
  • Expected Lifetime: >1,000,000 %O2 hours
  • Electrical Interface: 3-pin Molex

Documentation

Replacement For

  • Viasys [Avea Ventilator, Infant SiPaP]

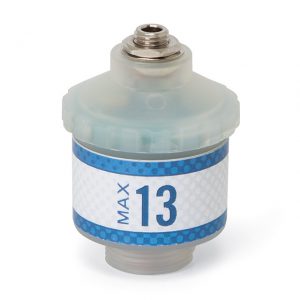

Max-13 Oxygen Sensor

R115P10 14 month warranty

Specifications

  • Output Range: 13.0 to 16.5 mV
  • Response Time: ≤ 12 s
  • Linearity: ≤ 3%
  • Expected Lifetime: > 1,000,000 %O2 hours
  • Electrical Interface: 3.5mm mono jack

Documentation

Replacement For

  • Analytical Industries [PSR-11-917-J]
  • City Technology [MOX-2]
  • Covidien [4-020933-00, 7820 Monitor, 7200 Vent]
  • Datascope [Anestar S]
  • EnviteC [OOM-102-1]
  • HillRom [6735142]
  • Invivo [9445 Sensor]
  • MSA [406931, MiniOX 3000, MiniOX II, MiniOX III]
  • Mercury Medical [10-103-05]
  • Pacifitech [PT-11A]
  • Philips (Respironics) [Criterion Vent, Espirit Vent Lifecare (#PLV-102), 37-079 Sensor]
  • Precision Medical [PM5900, 504877]
  • Teledyne [R17MED #C-43690, R17MED #C-43690]
  • Teleflex (Hudson) [5567, V-11]
  • VTI [100580]
  • Viasys [66030 Sensor, 6400 Vent, 8400 Vent, VIP Vent]

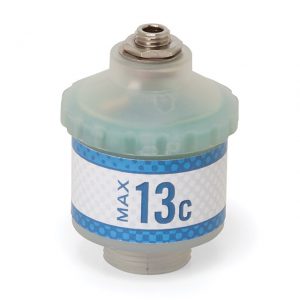

Max-13c Oxygen Sensor

R115P01 14 month warranty

Specifications

  • Output Range: 13.0 to 17.0 mV
  • Response Time: ≤ 13 s
  • Linearity: < 3%
  • Expected Lifetime: > 1,000,000 %O2 hours
  • Electrical Interface: 2.5mm phone plug

Documentation

Replacement For

  • BioMed Devices [4433]

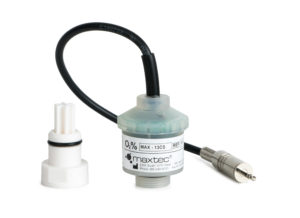

Max-13CS Oxygen Sensor with white fitting diverter

Max-13CS Oxygen Sensor

R115P01-001 12 month warranty

Specifications

  • Output Range: 10.5 to 15 mV
  • Response Time: ≤ 15 seconds
  • Linearity: < 2.0% of full scale

Documentation

Replacement For

  • BioMed Devices [Crossvent 2+, Crossvent 2i+, Crossvent 3+, Crossvent 4+]

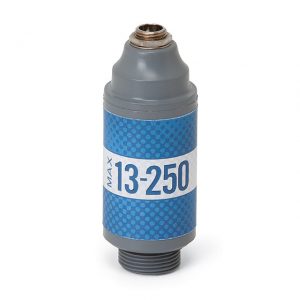

Max-13-250 Oxygen Sensor

R125P07 24 month warranty

Specifications

  • Output Range: 12.0 to 17.0 mV
  • Response Time: ≤ 15 s
  • Linearity: ± 1.0%
  • Expected Lifetime: >1,500,000 %O2 hours
  • Electrical Interface: 3.5mm mono jack

Documentation

Replacement For

  • Analytical Industries [PSR-11-917-J]
  • Covidien [4-020933-00, 7820 Monitor, 7200 Vent]
  • Datascope [Anestar S]
  • HillRom [6735142]
  • Invivo [9445 Sensor]
  • MSA [406931, MiniOX 3000, MiniOX II, MiniOX III]
  • Mercury Medical [10-103-05]
  • Pacifitech [PT-11A]
  • Philips (Respironics) [Criterion Vent, Espirit Vent Lifecare (#PLV-102), 37-079 Sensor]
  • Teledyne [R17 #C-43690]
  • Teleflex (Hudson) [5567]
  • VTI [100580]
  • Viasys [66030 Sensor, 6400 Vent, 8400 Vent, VIP Vent]

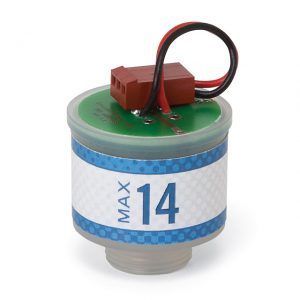

Max-14 Oxygen Sensor

R116P80 14 month warranty

Specifications

  • Output Range: 9.0 to 13.0 mV
  • Response Time: ≤ 12 s
  • Linearity: < 3%
  • Expected Lifetime: > 1,000,000 %O2 hours
  • Electrical Interface: 3-pin Molex

Documentation

Replacement For

  • Devilbiss [02ANA-101 Sensor]
  • MSA [806572, MiniOX 1A]
  • Mercury Medical [10-103-13]
  • Pacifitech [PT-26]

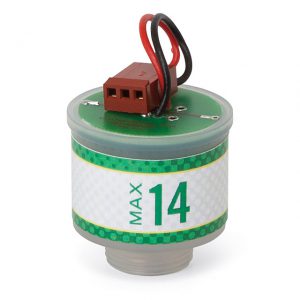

Max-14 Scuba Oxygen Sensor

R116P80

Replacement For

  • Maxtec [R116P80]

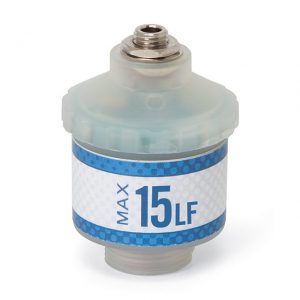

Max-15LF Lead Free Oxygen Sensor

R115P61 24 month warranty

Specifications

  • Output Range: 8 to 13 mV @ dry ambient air
  • Response Time: < 10 seconds
  • Linearity: < 3% @ 100% O2 applied for 3 min

Documentation

Replacement For

  • City Technology [MOX-2]
  • Mindray [A3, A5]

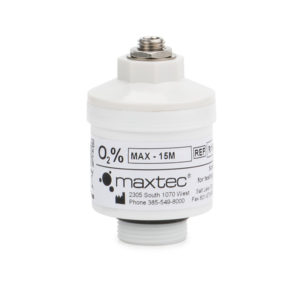

Max-15M Oxygen Sensor

R115P63 14 month warranty

Specifications

  • Output Range: 5 to 15 mV
  • Response Time: ≤ 12 s
  • Linearity: ≤ 3%
  • Expected Lifetime: > 750,000 %O2 hours
  • Electrical Interface: 3.5 mm mono jack

Documentation

Replacement For

  • City Technology [MOX-2]
  • Mindray [A3, A5]

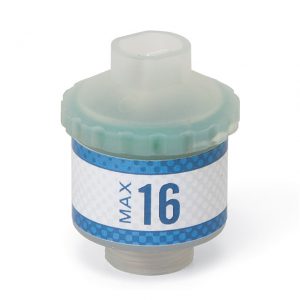

Max-16 Oxygen Sensor

R114P70 16 month warranty

Specifications

  • Output Range: 9.0 to 16.0 mV
  • Response Time: ≤ 12 seconds
  • Linearity: ≤ 3%
  • Expected Lifetime: > 1,000,000 %O2 hours
  • Electrical Interface: 3-pin Molex

Documentation

Replacement For

  • Covidien [4-072214-00, 980, 840, 740, 760, PB2000 Tester]

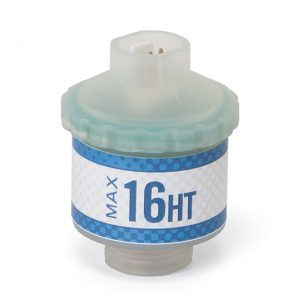

Max-16ht Oxygen Sensor

R114P73 18 month warranty

Specifications

  • Output Range: 9.5 to 16 mV
  • Response Time: ≤ 12 s
  • Linearity: ± 2.0%
  • Expected Lifetime: 1,500,000 %O2 hours
  • Electrical Interface: 3-pin Molex

Documentation

Replacement For

  • Versamed [Vent]

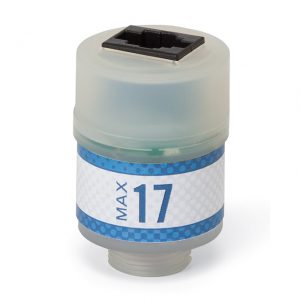

Max-17 Oxygen Sensor

R116P10 12 month warranty

Specifications

  • Output Range: 7.5 to 12.5
  • Response Time: ≤ 8 s
  • Linearity: < 3.0%
  • Expected Lifetime: > 500,000 %O2 hours
  • Electrical Interface: 4-pin female jack

Documentation

Replacement For

  • Analytical Industries [PSR-11-77]
  • City Technology [MOX-4]
  • EnviteC [OOM-105]
  • International Technologies [M-07]
  • Mercury Medical [10-103-02]
  • Pacifitech [PT-03]
  • Penlon [MTS]
  • Teledyne [T-7]
  • Teleflex (Hudson) [5558, V-03]

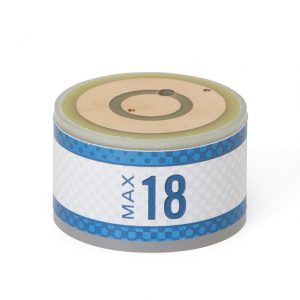

Max-18 Oxygen Sensor

R116P40 12 month warranty

Specifications

  • Output (in air): 200 ± 40 µA
  • Response Time: ≤ 13 seconds at 30° C
  • Linearity: < 3%
  • Expected Lifetime: > 250,000 %O2 hours
  • Electrical Interface: 1mm x 3.5mm Pins

Documentation

Replacement For

  • Analytical Industries [PSR-11-33-1]
  • Mercury Medical [10-103-01]
  • Pacifitech [PT-02]
  • Teledyne [C1R #B-39022]
  • Teleflex (Hudson) [5569, V-02, 5525, 5528, 5529, 5550, 5552]

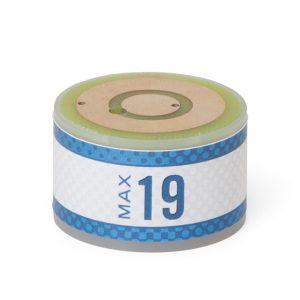

Max-19 Oxygen Sensor

R116P60 12 month warranty

Specifications

  • Output Range: 170 to 230 µA
  • Response Time: < 20 s
  • Linearity: ≤ 3%
  • Expected Lifetime: > 250,000 %O2 hours
  • Electrical Interface: gold-plated slip rings

Documentation

Replacement For

  • Analytical Industries [PSR-11-33-1]
  • Hamilton [HM-01, Veolar, Amadeus, Arabella]
  • Mercury Medical [10-103-00]
  • Pacifitech [PT-01]
  • Teledyne [T1 #A-37016]
  • Teleflex (Hudson) [5565, 5568, C1, C-01]

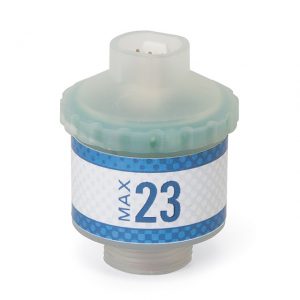

Max-23 Oxygen Sensor

R116P06 12 month warranty

Specifications

  • Output Range: 8.0 to 13.0 mV
  • Response Time: 1.5 - 3.5 s
  • Linearity: ≤ 3%
  • Expected Lifetime: 500,000 %O2 hours
  • Electrical Interface: 2-pin Molex

Documentation

Replacement For

  • City Technology [MOX-1]
  • EnviteC [OOM-102]
  • Teledyne [R22 #C-44611]
  • Teleflex (Hudson) [5566]

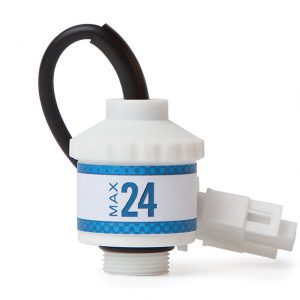

Max-24 Oxygen Sensor

R109P15 16 month warranty

Specifications

  • Output Range: 8.5 to 11.5 mV
  • Response Time: ≤ 12 s
  • Linearity: ≤ 3%
  • Expected Lifetime: > 500,000 %O2 hours
  • Electrical Interface: Mate-n-Lock 2-way

Documentation

Replacement For

  • Stephan [Stephanie Infant Ventilator]
  • GE (Datex-Ohmeda) [6051-0000-216]
  • City Technology [Mox-10]
  • EnviteC [OOM202-25]

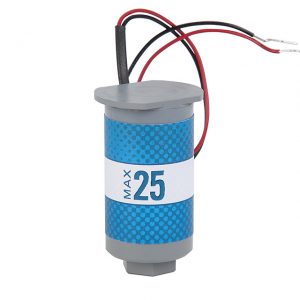

Max-25 Oxygen Sensor

R100P51-002 24 month warranty

Specifications

  • Output Range: 10.0 - 15.5 mV
  • Response Time: 14 ± 2 s
  • Linearity: ± 2.0%
  • Expected Lifetime: 5 years
  • Electrical Interface: .062" dual-pin Molex

Documentation

Replacement For

  • Figaro [KE-25]

Max-31c Ppm Oxygen Sensor

R108P13 8 month warranty

Specifications

  • Response Time: < 15 s
  • Expected Lifetime: > 2 years
  • Electrical Interface: 3-pin Molex

Documentation

Replacement For

  • Custom [Contact Maxtec for Applications]

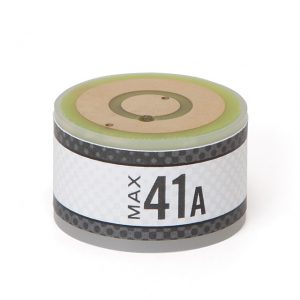

Max-41a Ppm Oxygen Sensor

R113P16

Specifications

  • Output Range: 400 ± 120 µA
  • Response Time: < 20 s from 10,000 down to 1,000 ppm
  • Linearity: ± 2%
  • Expected Lifetime: 2 years
  • Electrical Interface: 2x slip-rings on PCB

Documentation

Replacement For

  • Custom [Contact Maxtec for Applications]

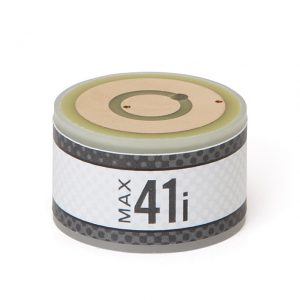

Max-41i Ppm Oxygen Sensor

R109P02

Specifications

  • Output Range: 340 to 580 µA
  • Linearity: ± 2.0%
  • Expected Lifetime: ~ 1 year
  • Electrical Interface: 2x slip-rings on PCB

Documentation

Replacement For

  • Analytical Industries [PSR-12-233]
  • Teledyne [B2C]

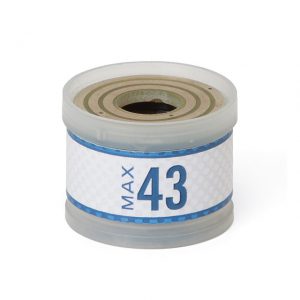

Max-43 Oxygen Sensor

R109P07 12 month warranty

Specifications

  • Output Range: 25 to 35 mV
  • Response Time: ≤ 17 s
  • Linearity: ≤ 3% at 100% O2
  • Expected Lifetime: > 500,000 %O2 hours
  • Electrical Interface: 2 gold-plated slip rings

Documentation

Replacement For

  • GE (Ohmeda) [Giraffe]

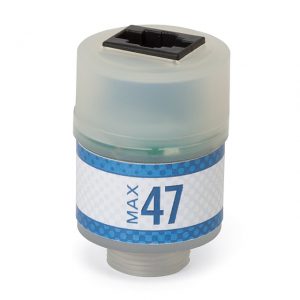

Max-47 Oxygen Sensor

R112P16 12 month warranty

Specifications

  • Output Range: 4-11 mV.
  • Response Time: ≤ 12 s
  • Linearity: ≤ 1.0%
  • Electrical Interface: AMP phone jack 4P4C

Documentation

Replacement For

  • Sensidyne [V-22]
  • Teleflex (Hudson) [5800 Monitor, 5801 Analyzer, 5803 Sensor]

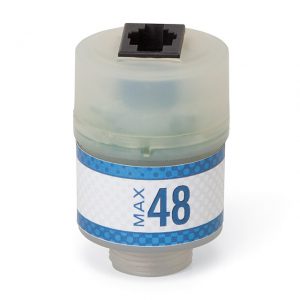

Max-48 Oxygen Sensor

R112P18 12 month warranty

Specifications

  • Output Range: 3.8 to 4.8 mV
  • Response Time: ≤ 12 s
  • Linearity: ≤ 2.0%
  • Expected Lifetime: 500,000 vol. %O2 hours
  • Electrical Interface: AMP phone jack 4P4C

Documentation

Replacement For

  • Analytical Industries [All-11-60, All2001 Analyzer, All2002 Analyzer]

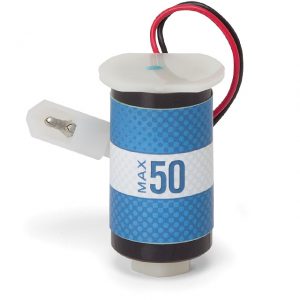

Max-50 Oxygen Sensor

R100P95-003 24 month warranty

Specifications

  • Output Range: 47.0 - 65 mV
  • Response Time: 60 ± 5 s
  • Linearity: ± 2.0%
  • Expected Lifetime: 5 years
  • Electrical Interface: .09" dual-pin Molex

Documentation

Replacement For

  • Figaro [KE-50]

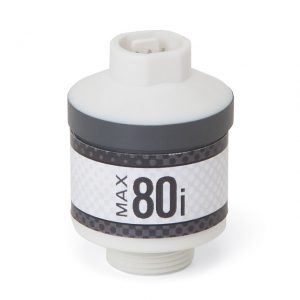

Max-80i Oxygen Sensor

R113P11 24 month warranty

Specifications

  • Output Range: 5 to 15 mV
  • Response Time: < 5 s
  • Expected Lifetime: > 1,200,000 %O2 hours
  • Electrical Interface: 3-pin Molex

Documentation

Replacement For

  • Custom [Custom applications with 3-pin molex connector]
  • Custom [Applications containing high levels of CO2 or other acidic gases]
  • Custom [Applications needing a short response time]

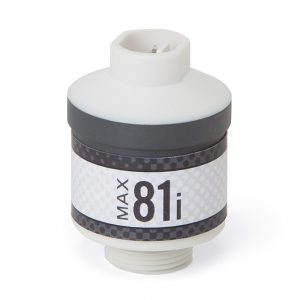

Max-81i Oxygen Sensor

R113P20 24 month warranty

Specifications

  • Output Range: 5 to 20 mV
  • Response Time: < 5 s
  • Expected Lifetime: > 1,200,000 %O2 hours
  • Electrical Interface: 3-pin Molex

Documentation

Replacement For

  • Custom [Custom applications with 3-pin molex connector]
Gray fio2 sensor with blue and white label with Max-125M printed on it

Max-125M Oxygen Sensor

R140P07-001 12 month warranty

Specifications

  • Output Range: 10.5 to 15 mV
  • Response Time: ≤ 15 s
  • Linearity: ± 1%
  • Expected Lifetime: > 500,000% O2 hours
  • Electrical Interface: Molex 22-29-2031 or Equivalent

Documentation

Replacement For

  • Maxtec [R114P70 - Max-16]
  • Covidien [4-072214-00, 980, 840, 740, 760, PB2000 Tester]
  • Philips (Respironics) [Helix, Trilogy EVO]

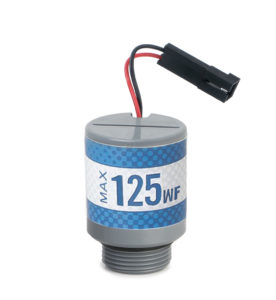

Blue and gray Max-125WF oxygen sensor with red and black cable with connector at the end.

Max-125WF Oxygen Sensor

R140P07-002 12 month warranty

Specifications

  • Output Range: 10.5 to 15 mV
  • Response Time: ≤ 15 s
  • Linearity: ± 1%
  • Expected Lifetime: > 500,000% O2 hours
  • Electrical Interface: Molex 70107-0001

Documentation

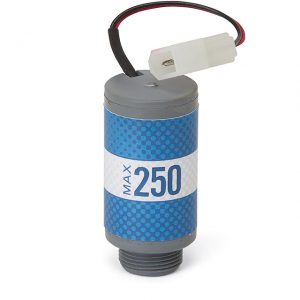

Max-250 Oxygen Sensor

R125P01-002 24 month warranty

Specifications

  • Output Range: 10.0 to 15.5 mV
  • Response Time: ≤ 15 s
  • Linearity: ± 1.0%
  • Expected Lifetime: > 1,500,000 %O2 hours

Documentation

Replacement For

  • Fluke [VT Mobile]
  • Maxtec [OM-25A]
  • Mercury Medical [10-103-11]
  • Pacifitech [PT-250]
  • Teledyne [R29]

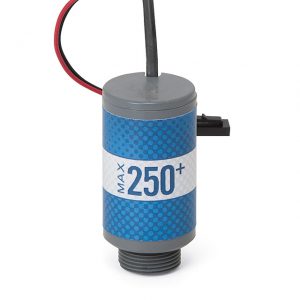

Max-250+ Oxygen Sensor

R125P02-011 24 month warranty

Specifications

  • Output Range: 10.0 to 15.5 mV
  • Response Time: ≤ 15 s
  • Linearity: ± 1.0%
  • Expected Lifetime: > 1,500,000 %O2 hours

Documentation

Replacement For

  • Maxtec [MaxO2+A]

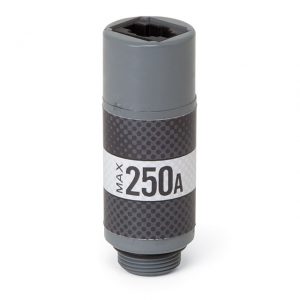

Max-250a Oxygen Sensor

R125P04-001 24 month warranty

Specifications

  • Output Range: 11mV ± 2.5 mV
  • Response Time: ≤ 15 s
  • Linearity: Within ± 1.0%
  • Expected Lifetime: > 1,500,000 %O2 hours

Documentation

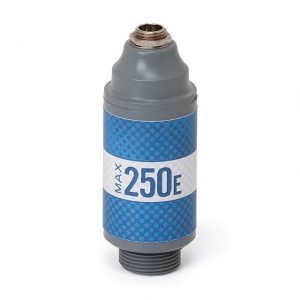

Max-250e Medical Oxygen Sensor

R125P03-002 24 month warranty

Specifications

  • Output Range: 10.0 to 15.5 mV
  • Response Time: ≤ 15 s
  • Linearity: Within ± 1.0%
  • Expected Lifetime: > 1,500,000 %O2 hours

Documentation

Replacement For

  • Analytical Industries [PSR-11-917-J1]
  • CareFusion [Sentry Blender]
  • Covidien [Newport E360]
  • Fluke [VT Mobile]
  • Maxtec [MaxO2+AE, OM-25AE, OM-25ME, MaxBlend, MaxVenturi]
  • Mercury Medical [10-103-08]
  • Pacifitech [PT-25A]
  • Teledyne [R29MED #C-70592]
  • Viasys [66045, Sentry Blender]

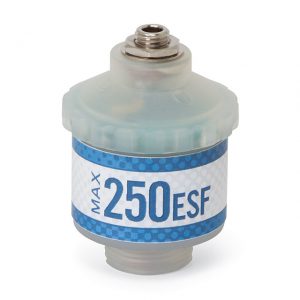

Max-250esf Oxygen Sensor

R115P85 12 month warranty

Specifications

  • Output Range: 12 ± 2 mV
  • Response Time: ≤ 5 sec
  • Linearity: Within ± 3.0% of full scale
  • Expected Lifetime: > 500,000 %O2 hours
  • Electrical Interface: Type 712A Switchcraft Power Jack

Documentation

Replacement For

  • Maxtec [MaxO2+AE, OM-25AE, OM-25ME, MaxBlend, MaxVenturi]

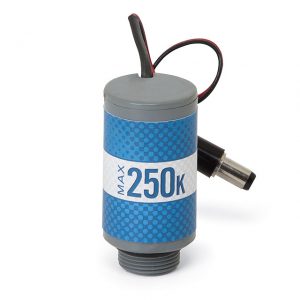

Max-250k w/ DC Connector Oxygen Sensor

R125P11-001 24 month warranty

Specifications

  • Output Range: 10.0 to 15.5 mV
  • Response Time: ≤ 15 s
  • Linearity: ± 1.0%
  • Expected Lifetime: > 1,500,000 %O2 hours

Documentation

Replacement For

  • Viasys [Vela Diamond Series, 16101]

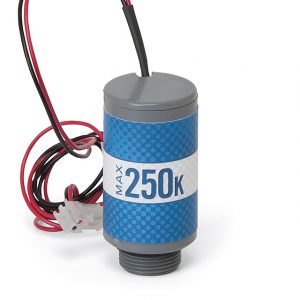

Max-250k Oxygen Sensor with Panduit Connector

R125P02-009 24 month warranty

Specifications

  • Output Range: 10.0 to 15.5 mV
  • Response Time: ≤ 15 seconds
  • Linearity: ± 1.0% of full scale

Documentation

Replacement For

  • Viasys [Vela T2 (Older Models)]

Max-250 w/ O-Ring Oxygen Sensor

R125P01-007 24 month warranty

Specifications

  • Output Range: 10.0 to 15.5 mV
  • Response Time: ≤ 15 s
  • Linearity: ± 1.0 %
  • Expected Lifetime: > 1,500,000 %O2 hours

Documentation

Replacement For

  • not specified [Precisionflow®]

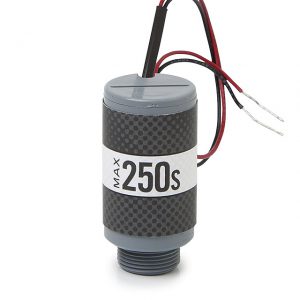

Max-250s Oxygen Sensor

R125P16-001 24 month warranty

Specifications

  • Output Range: 10.0 to 15.5 mV
  • Response Time: ≤ 15 s
  • Linearity: ± 2.0%
  • Expected Lifetime: > 1,500,000 %O2 hours

Documentation

Replacement For

  • Custom [Custom applictions needing extra stability]

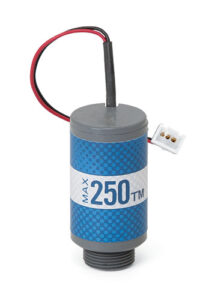

Max-250TM Oxygen Sensor

R125P18-012 24 month warranty

Specifications

  • Output Range: 11 ± 2.5 mV
  • Response Time: ≤ 15 s
  • Linearity: ± 2.0%
  • Expected Lifetime: > 1,500,000 %O2 hours

Documentation

Replacement For

  • Custom [Custom applications with 3-pin molex connector]

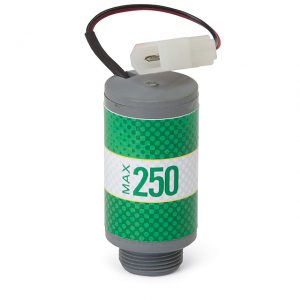

Max-250 Scuba Oxygen Sensor

R125P01-003 24 month warranty

Specifications

  • Output Range: 10.0 to 15.5 mV
  • Response Time: ≤ 15 s
  • Linearity: ± 1.0%
  • Expected Lifetime: > 1,500,000 %O2 hours

Documentation

Replacement For

  • Maxtec [R125P01-002]

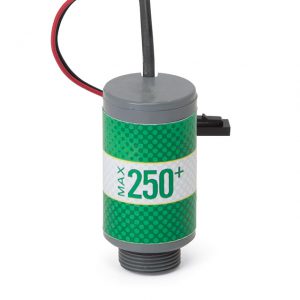

Max-250+ Scuba Oxygen Sensor

R125P02-013 24 month warranty

Specifications

  • Output Range: 10.0 to 15.5 mV
  • Response Time: ≤ 15 s
  • Linearity: ± 1.0%
  • Expected Lifetime: > 1,500,000 %O2 hours

Documentation

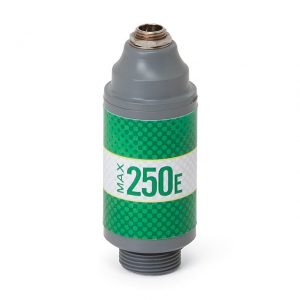

Max-250e Scuba Oxygen Sensor

R125P03-004 24 month warranty

Specifications

  • Output Range: 10.0 to 15.5 mV
  • Response Time: ≤ 15 s
  • Linearity: Within ± 1.0%
  • Expected Lifetime: > 1,500,000 %O2 hours

Documentation

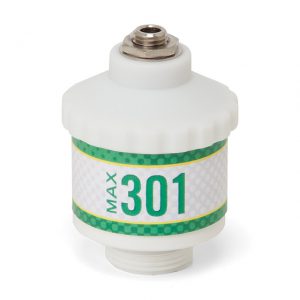

Max-301 Scuba Oxygen Sensor

R108P15 12 month warranty

Specifications

  • Output Range: 8.5 to 12 mV
  • Response Time: ≤ 12 Seconds
  • Linearity: < 2%

Documentation

Replacement For

  • Analytical Industries [PSR-11-39-JD]
  • Dive Rite [VTI Analyzer]
  • MSA [MiniOX I]
  • MSA (Ohio Medical) [MiniOx I]
  • Maxtec [R108P15]
  • OxyCheq [El Cheapo I]
  • Teledyne [R-17D, R17D]
  • Vandergraph [VN202]

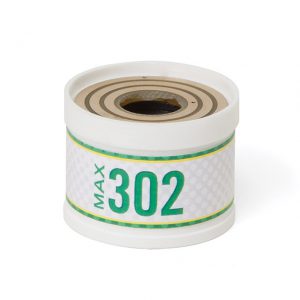

Max-302 Scuba Oxygen Sensor

R108P16 12 month warranty

Specifications

  • Output Range: 14 to 20 mV
  • Response Time: ≤ 12 seconds
  • Linearity: < 2%

Documentation

Replacement For

  • Analytical Industries [PSR-11-15-D]
  • Drager [OxyGauge]
  • Maxtec [R108P16]
  • OxySpy [R-15]

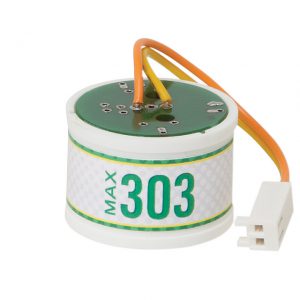

Max-303 Scuba Oxygen Sensor

R108P01 12 month warranty

Specifications

  • Output Range: 22 to 28 mV
  • Response Time: ≤ 5 seconds
  • Linearity: < 2%

Documentation

Replacement For

  • Analytical Industries [PSR-11-37-D7]
  • Maxtec [R108P0]
  • OxyCheq [R-33D]
  • UBS [O2 Stick]

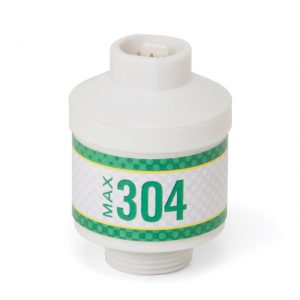

Max-304 Scuba Oxygen Sensor

R108P02 12 month warranty

Specifications

  • Output Range: 10 to 12.5 mV
  • Response Time: ≤ 13 seconds
  • Linearity: 0 to 1.5 bar: <3%

Documentation

Replacement For

  • Maxtec [R108P02]
  • Uwatec [Oxy2]

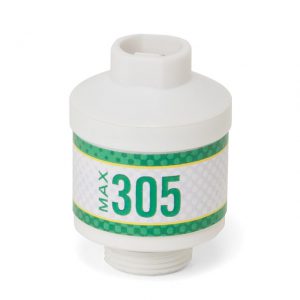

Max-305 Scuba Oxygen Sensor

R108P17 12 month warranty

Replacement For

  • DiveTek [O2 Analyzer I, O2 Analyzer II]
  • KISS [Rebreather]
  • Mares [EANx]
  • Maxtec [R108P17]
  • OxyCheq [RD22]
  • Teledyne [R22D]

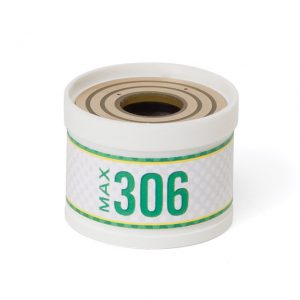

Max-306 Scuba Oxygen Sensor

R108P18 12 month warranty

Specifications

  • Output Range: 14.5 to 19.5 mV
  • Response Time: ≤ 12 seconds
  • Linearity: < 2% at 100% oxygen

Documentation

Replacement For

  • Analytical Industries [PSR-11-15-2D]
  • Drager [OxyGauge]
  • Maxtec [R108P18]
  • OxyCheq [R-23]

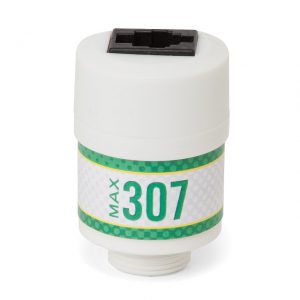

Max-307 Scuba Oxygen Sensor

R108P19 12 month warranty

Specifications

  • Output Range: 7.5 to 12.5 mV
  • Linearity: 2% full scale

Documentation

Replacement For

  • Analytical Industries [PSR-11-77D]
  • Maxtec [R108P19]
  • OxyCheq [T7]
  • Teledyne [TED60 Analyzer]

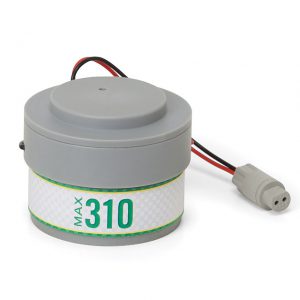

Max-310 Scuba Oxygen Sensor

R108P05 12 month warranty

Specifications

  • Output Range: 22 to 28 mV
  • Response Time: ≤ 5 seconds
  • Linearity: < 2%

Documentation

Replacement For

  • Analytical Industries [PSR-11-33-NM1]
  • OxyCheq [R10D]
  • Teledyne [R10DS]

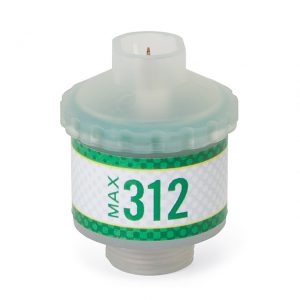

Max-312 Scuba Oxygen Sensor

R108P06 12 month warranty

Specifications

  • Output Range: 22 to 28 mV
  • Response Time: ≤ 5 seconds
  • Linearity: 2% full scale

Documentation

Replacement For

  • Analytical Industries [PSR-11-39-MD1]
  • Biomarine [Mark 15/15.5]
  • CCR [1000]
  • Maxtec [R108P06]
  • OMS [OX-SNSR]
  • OxyCheq [RD22DHO]
  • SM [1600]
  • Teledyne [R22DDHO]

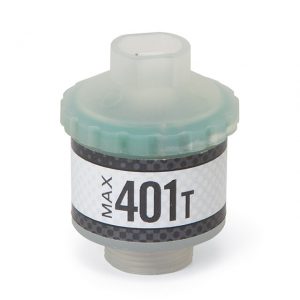

Max-401t Automotive Oxygen Sensor

R108P50 14 month warranty

Specifications

  • Output Range: 8.0 to 14.0 mV
  • Response Time: ≤ 5 s
  • Expected Lifetime: 500,000 %O2 hours
  • Electrical Interface: 3-pin Molex

Documentation

Replacement For

  • AVL Analyzers
  • SUN Analyzers

Max-402t Automotive Oxygen Sensor

R108P51 14 month warranty

Specifications

  • Output Range: 7 to 13.5 mV
  • Response Time: < 5 s
  • Expected Lifetime: > 750,000 %O2 hours
  • Electrical Interface: 3.5mm mono jack

Documentation

Replacement For

  • Bosch Emission Analyzers

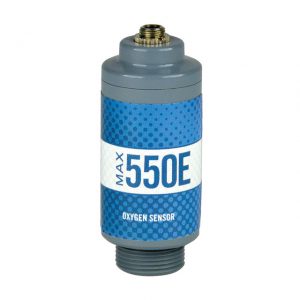

Max-550E Oxygen Sensor

R140P02 24 month warranty

Specifications

  • Output Range: 10.5 to 15 mV
  • Response Time: ≤ 15 s
  • Linearity: ≤ 2%
  • Expected Lifetime: 1,500,000 %O2 hours
  • Electrical Interface: 3-pin stereo jack

Documentation

Replacement For

  • Maxtec [MaxO2 ME, R140P02]

Max-550E Oxygen Sensor for MaxBlend

R140P02-001 24 month warranty

Specifications

  • Output Range: 10.5 to 15 mV
  • Response Time: ≤ 15 s
  • Linearity: < 2.0%
  • Electrical Interface: 3-pin stereo jack

Documentation

Replacement For

  • Maxtec [MaxBlend 2, MaxBlend Lite, BlenderBuddy 2, R140P02-001]
  • CareFusion [Sentry 2, R140P02-001]

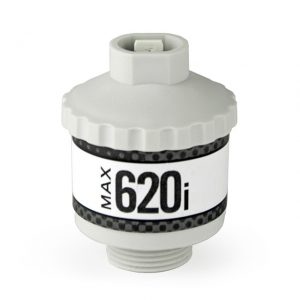

Max-620i Nitric Oxide (no) Sensor

R108P60

Specifications

  • Response Time: < 15 s
  • Expected Lifetime: 2 years
  • Electrical Interface: 3-pin Molex

Documentation

Replacement For

  • Custom [Industrial Applications]

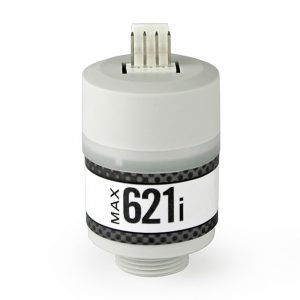

Max-621i Nitric Oxide (no) Sensor

R108P62

Specifications

  • Response Time: < 15 s
  • Expected Lifetime: > 2 years
  • Electrical Interface: 4-pin Molex

Documentation

Replacement For

  • Custom [Industrial Applications]

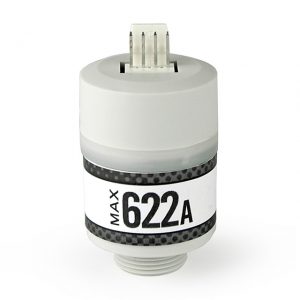

Max-622a Nitric Oxide (no) Sensor

R108P47

Specifications

  • Output Range: 45 to 75 nA/ppm
  • Response Time: < 5 s
  • Linearity: ± 3%
  • Electrical Interface: 4-pin Molex

Documentation

Replacement For

  • Custom [Automotive Applications]

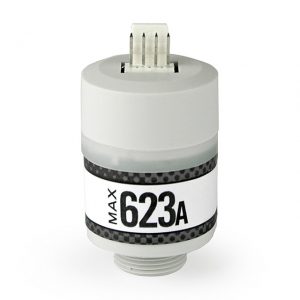

Max-623a Nitric Oxide (no) Sensor

R108P49

Specifications

  • Output Range: 45 to 75 nA/ppm
  • Response Time: < 5 s
  • Linearity: ± 3%
  • Electrical Interface: 4-pin Molex

Documentation

Replacement For

  • Custom [Automotive Applications]

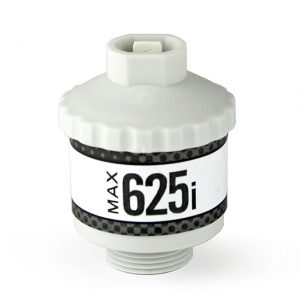

Max-625i Nitric Oxide (no) Sensor

R108P66

Specifications

  • Response Time: < 15 s
  • Expected Lifetime: > 2 years
  • Electrical Interface: 3-pin Molex

Documentation

Replacement For

  • Custom [Industrial Applications]

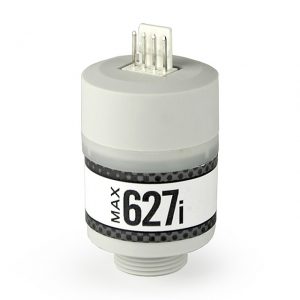

Max-627i Nitric Oxide (no) Sensor

R108P68

Specifications

  • Response Time: < 15 s
  • Expected Lifetime: > 2 years
  • Electrical Interface: 4-pin Molex

Documentation

Replacement For

  • Custom [Industrial Applications]

Max-641a

R108P45

Specifications

  • Output Range: 45 to 75 nA/ppm
  • Response Time: < 5 s
  • Linearity: ± 3%
  • Electrical Interface: 4-pin Molex

Documentation

Max-651a Nitric Oxide (no) Sensor

R108P46

Specifications

Documentation

Replacement For

  • Custom [Automotive Applications]

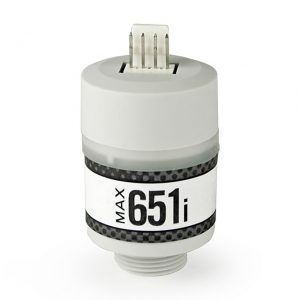

Max-651i Nitric Dioxide Sensor

R108P72

Specifications

  • Response Time: < 15 s
  • Expected Lifetime: > 2 years
  • Electrical Interface: 4-pin Molex

Documentation

Replacement For

  • Custom [Industrial Applications]

Max-652i Nitric Dioxide Sensor

R108P74

Specifications

  • Response Time: < 15 s
  • Expected Lifetime: > 2 years
  • Electrical Interface: 3-pin Molex

Documentation

Replacement For

  • All [Industrial Applications]
