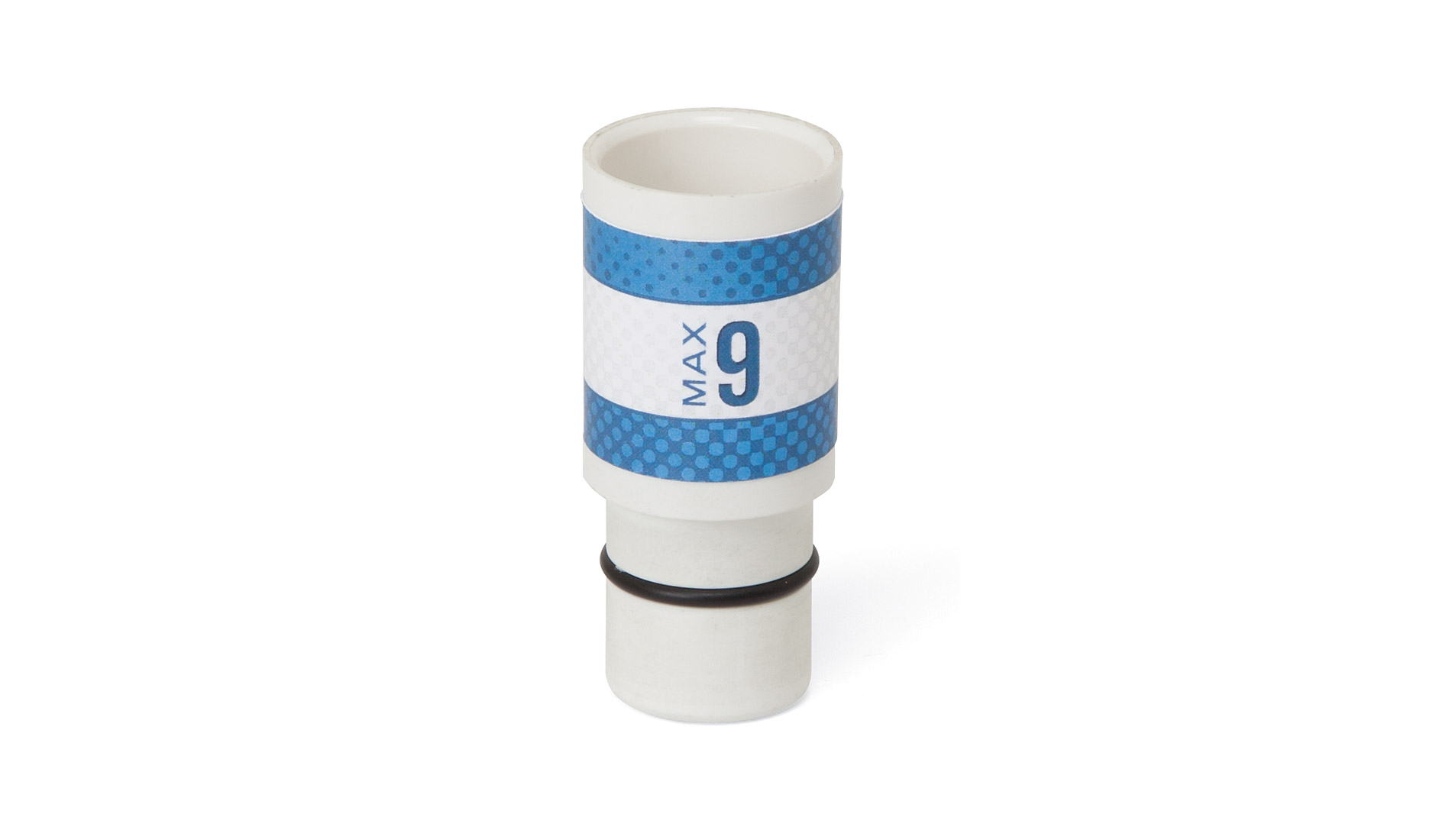

Max-9 Oxygen Sensor

Replacement For

  • Analytical Industries [PSR-11-55]
  • HillRom [6736140]
  • Mercury Medical [10-103-03]
  • Pacifitech [PT-05]
  • Teledyne [R13 #B-39636]
  • Teleflex (Hudson) [5500, V-05, 5590, 5577, 5584, 5595, 6477]

Specifications

  • Range of Measurement: 0 to 100% O2
  • Output Range: 26.4 to 44.0 mV
  • Zero Offset: ≤ 0.40 mV
  • Response Time: ≤ 20 s
  • Linearity: ±1%
  • Operational Temperature Range: 0˚ to 40˚C
  • Storage Temperature Range: -20˚ to 50˚C
  • Humidity Range: 0% to 100% RH, non-condensing
  • Electrical Interface: 4-pin Hudson
