Max-125WF Oxygen Sensor

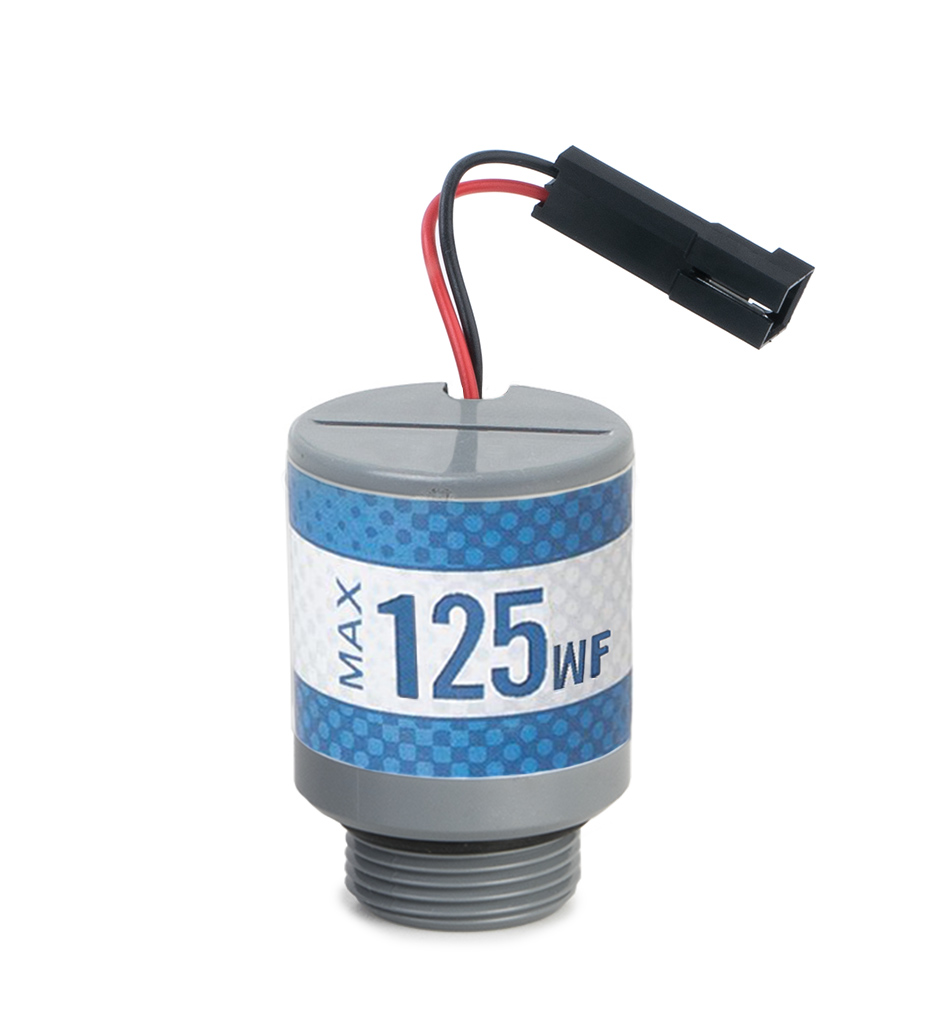

Blue and gray Max-125WF oxygen sensor with red and black cable with connector at the end.

Specifications

  • Range of Measurement: 0 to 100%
  • Output Range: 10.5 to 15 mV
  • Zero Offset: ≤ 0.5 mV
  • Response Time: ≤ 15 s
  • Linearity: ± 1%
  • Expected Lifetime: > 500,000% O2 hours
  • Temperature Compensation: < ± 3.0% from 15º to 40ºC
  • Operational Temperature Range: 5˚ to 40˚C
  • Storage Temperature Range: -15˚ to 50˚C
  • Humidity Range: 5% to 95% RH, non-condensing
  • Electrical Interface: Molex 70107-0001
