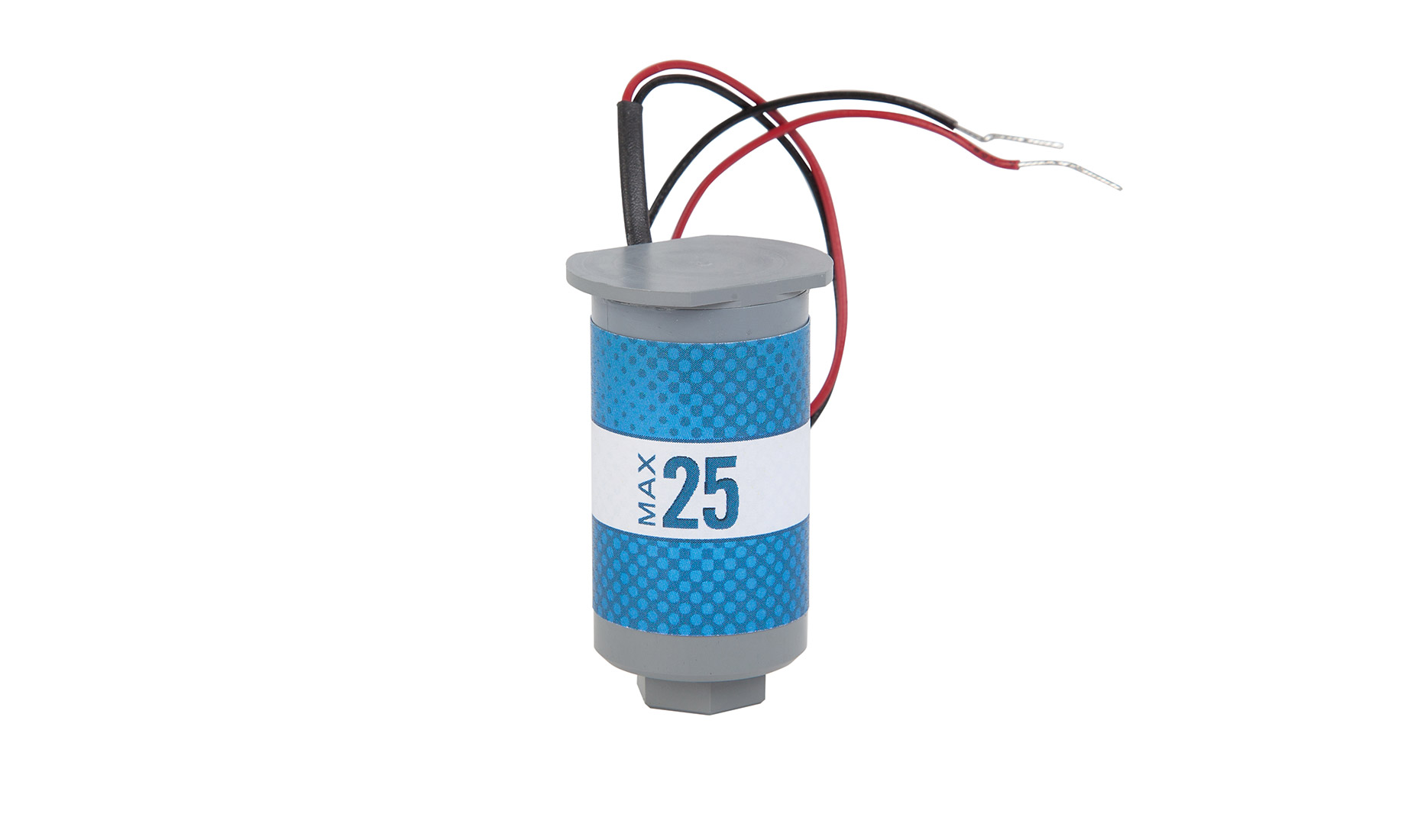

Max-25 Oxygen Sensor

Replacement For

  • Figaro [KE-25]

Specifications

  • Range of Measurement: 0 to 100% O2
  • Output Range: 10.0 – 15.5 mV
  • Zero Offset: < 0.5 mV
  • Response Time: 14 ± 2 s
  • Linearity: ± 2.0%
  • Expected Lifetime: 5 years
  • Operational Temperature Range: 5° – 40°C
  • Storage Temperature Range: -15° to 50°C
  • Humidity Range: 10 to 90% RH
  • Ambient Pressure Range: 811-1216 hPa
  • Interference: Per EN ISO 80601-2-55
  • Electrical Interface: .062″ dual-pin Molex
