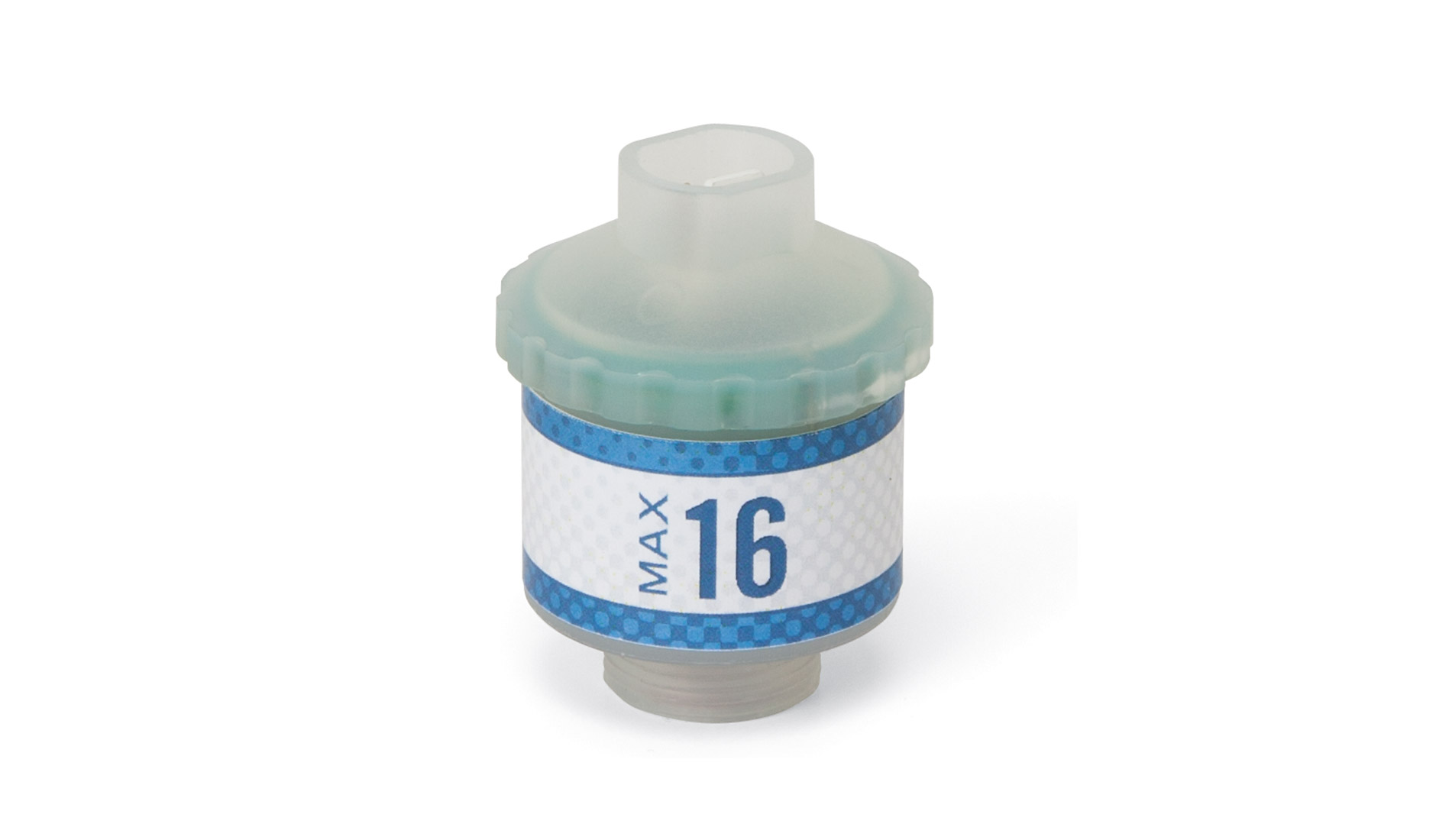

Max-16 Oxygen Sensor

Replacement For

  • Covidien [4-072214-00, 980, 840, 740, 760, PB2000 Tester]

Specifications

  • Range of Measurement: 0 to 100%
  • Output Range: 9.0 to 16.0 mV
  • Zero Offset: ≤ 0.250 mV
  • Response Time: ≤ 12 seconds
  • Linearity: ≤ 3%
  • Expected Lifetime: > 1,000,000 %O2 hours
  • Temperature Compensation: NTC
  • Operational Temperature Range: 10° to 40°C
  • Storage Temperature Range: -20° to 50°C
  • Humidity Range: 0% to 99% RH, non-condensing
  • Ambient Pressure Range: 700-1250 mbar
  • Interference: PER EN ISO 80601-2-55
  • Electrical Interface: 3-pin Molex
